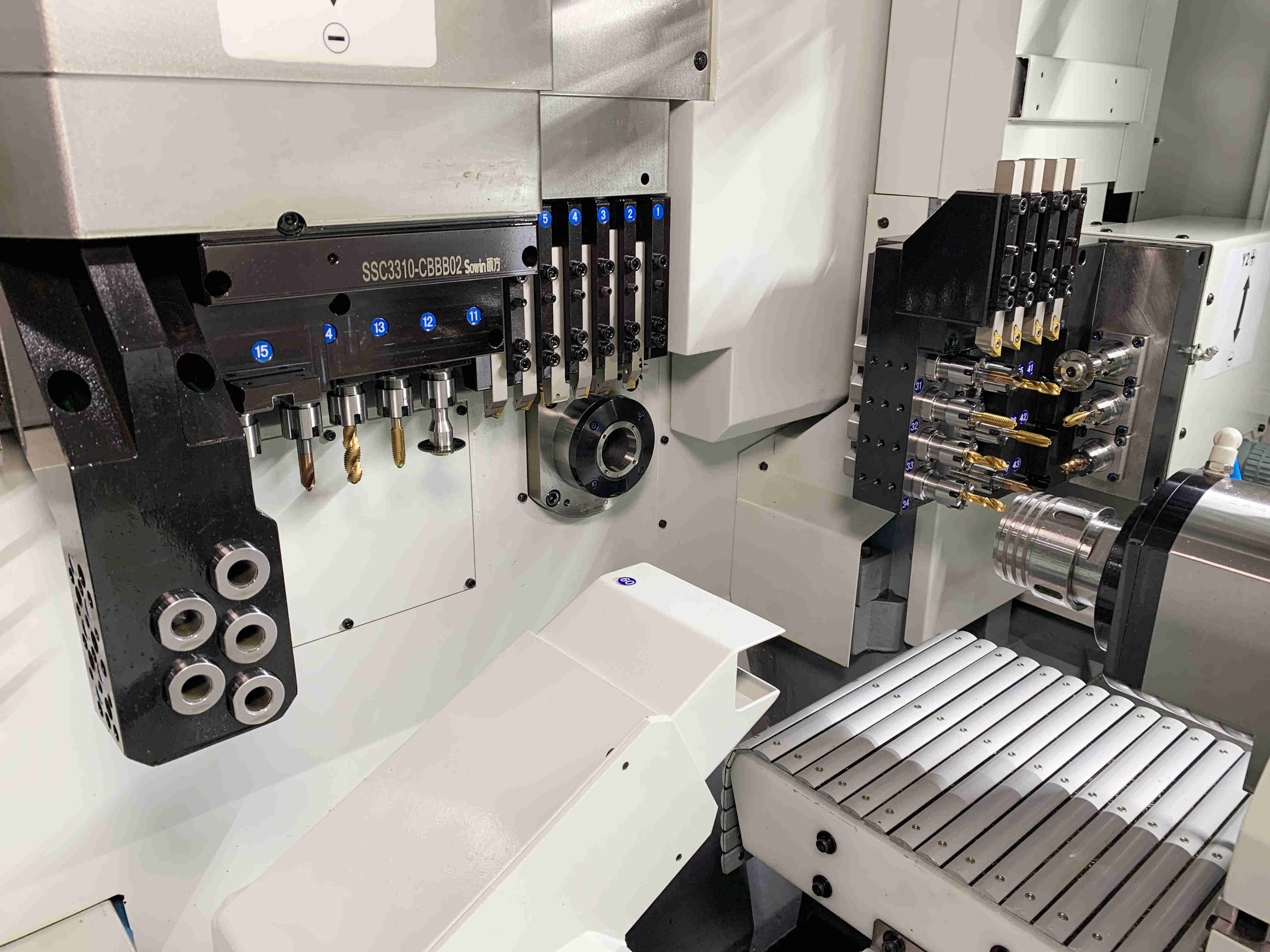

Dual spindle Swiss-type lathe SZ-206F
Model：SZ-206F
Features
● The newly designed frame is optimized by means of finite element analysis (FEA), which not only meets the requirements of high rigidity and high precision machining, but also has obvious effect in absorbing vibration and reducing resonance.
● Each mobile support adhere to the design principle of lightweight, lightweight at the same time, but also meet the requirements of high rigidity, high precision, in order to improve the dynamic response of machine tools, achieve energy saving materials;
●Drive rotation guide bush structure, high speed, high precision machining, with guide bush and no guide bush flexible switch
● oil-cooled motorized spindle, compact structure, light weight, small inertia, low noise, fast response, easy to achieve positioning;
Product Details
Processing application：
Medical equipment, hardware tools, textile machinery, electronic communication, aerospace, etc.
| Model | SZ-206F 6 axis, dual spindle | SZ-126F 6 axis, dual spindle | |||
| Cutting-tool layout sketch |  |  | |||
| NC device | Mitsubbishi M80 | Mitsubbishi M80 | |||
| Power source | 200AVC | 200AVC | |||
| Lathe rated power | Kw | 11 | 11 | ||
| Machining range | Machining range dia. | mm | ∅ 20 | ∅ 12 | |
Main spindle max clamping dia. | mm | ∅ 20 | ∅ 12 | ||
Max feed length (once) | mm | 240 | 240 | ||
Main/sub spindle | Main spindle power | Kw | 2.2/3.7 | 2.2/3.7 | |
| Sub spindle power | Kw | 1.5/2.2 | 1.5/2.2 | ||
Main spindle max through hole dia. | mm | ∅ 27 | ∅ 13 | ||
| C axis resolution | ° | 0.001 | 0.001 | ||
Main/sub spindle rev speed | rpm | Main spindle：2900/9790 sub spindle：3870/11800 | Main spindle：2900/9790 sub spindle：3870/11800 | ||
Sub spindle max clamping dia. | mm | ∅ 20 | ∅ 12 | ||
Sub spindle max through hole dia. | mm | ∅ 27 | ∅ 13 | ||
Main spindle max drilling depth | mm | 50 | 50 | ||
| Main spindle max travel | With guide bush | mm | 240 | 240 | |
| Non guide bush | mm | 360 | 360 | ||
| Max tool installed qty. | pcs | 30 | 30 | ||
| Main spindle tool | |||||
| ①OD Turning tool | Qty.×Model | 6X¨12 | 6X¨12 | ||
| ② Cross live tool | Qty.×Model | 5XER16 | 5XER16 | ||
| Drilling dia. | mm | ∅ 10 | ∅ 10 | ||
Tapping/Threading die dia. | M6 | M6 | |||
| Live tool rev speed | rpm | Max 5000 | Max 5000 | ||
| Live tool power | Kw | 1 | 1 | ||
| ③End face fixed tool | Qty.×Model | 5XER16 | 5XER16 | ||
| Drilling dia. | mm | ∅ 10 | ∅ 10 | ||
| Tapping/Threading die dia. | M8 | M8 | |||
| Sub spindle tool | |||||
| ⑥End face fixed | Qty.×Model | 4×ER16 | 4×ER16 | ||
| Drilling dia. | mm | Max φ10 | Max φ10 | ||
| Tapping/Threading die dia. | Max M8 | Max M8 | |||
| Live tool | ⑥End face live tool | Qty.×Model | 3×ER16 | 3×ER16 | |
| Drilling dia. | mm | Max φ10 | Max φ10 | ||
| Tapping/Threading die dia. | Max M6 | Max M6 | |||
Live tool rev speed | rpm | Max 5000 | Max 5000 | ||
| Live tool power | Kw | 1 | 1 | ||
| ⑤Cross live tool | Qty.×Model | 3×ER16 | 3×ER16 | ||
| Drilling dia. | mm | Max φ10 | Max φ10 | ||
| Tapping/Threading die dia. | Max M6 | Max M6 | |||
| ④OD Turning tool | 4X¨12 | 4X¨12 | |||
| Electronic rotary guide bush | Kw | 1 | 1 | ||
| Rapid feed speed | m/min | 30(Z1/Z2/X2/Y1)24(X1/Y2) | 30(Z1/Z2/X2/Y1)24(X1/Y2 | ||
| Feed motorpower | Kw | 1(Z1/Z2/X1/X2/Y1/Y2) | 1(Z1/Z2/X1/X2/Y1/Y2) | ||
| Cutting oil pump power | Kw | 0.4 | 0.4 | ||
| Main/sub spindle cooling oil pump power | Kw | 1.2 | 1.2 | ||
| Lubricating oil pump power | Kw | 0.25 | 0.25 | ||
| Max collecting length of workpieces collect box | mm | 80 | 80 | ||
Main/sub spindle center to the bottom of lathe body | mm | 1018 | 1018 | ||
| Cutting oil tank volume | L | 160 | 160 | ||
| Air pressure | Mpa | ≥0.4 | ≥0.4 | ||
| Net weight | Kg | 2800 | 2800 | ||
| Dimensions(L×W×H) | mm | 2363X1402X1918 | 2363X1402X1918 | ||
Notes：Technical parameters are subject to change without prior notice.
| 206F/126F series | ||
| OP system | SYNTEC 220TB | FANUC Oi-TF Plus |
| Power source | 380VAC | 200VAC |
| Live tool power | 1Kw | 0.75Kw |
| Live tool rev speed | 5000rpm | 4000rpm |
| Feed motor power | 1Kw(Z1/Z2/X1/X2/Y1/Y2) | 0.75Kw(Z1/Z2/X1/X2/Y1/Y2) |
| Rapid feed speed | 30(Z1/Z2/X2/Y1)24(X1/Y2) | 30(Z1/Z2/X2/Y1)24(X1/Y2) |
Standard configuration
1. Taiwan syntec control system
Japan FANUC control system
2. 10.4 inch Color LCD display
3. Main/sub spindle cooling system
4. Lricating system
5. Rotatory guide bush
6. Main/sub spindle air blowing device
7. Main/sub spindle air blowing device
8. Electric leakage protection
9. Transformer
10. External light connector
11. 3-colour tower light
12. HIWIN/PMI screw/guide rail, Class 3
13. Cutting oil tank
14. Main/sub spindle collet 1pcs; guide bush 1 pcs
15. Tool cabinet
16. Chip conveyor
17. Manual book
Installation size：
1. Taiwan syntec control system
Japan FANUC control system
2. 10.4 inch Color LCD display
3. Main/sub spindle cooling system
4. Lricating system
5. Rotatory guide bush
6. Main/sub spindle air blowing device
7. Main/sub spindle air blowing device
8. Electric leakage protection
9. Transformer
10. External light connector
11. 3-colour tower light
12. HIWIN/PMI screw/guide rail, Class 3
13. Cutting oil tank
14. Main/sub spindle collet 1pcs; guide bush 1 pcs
15. Tool cabinet
16. Chip conveyor
17. Manual book
Installation size：
Optional configuration
1. Automatic bar feeder
2. Chip conveyor
3. Oil mist collector
4. High pressure pump
5. Long workpiece collector
6. Workpiece belt conveyor
7. xternal working litht
8. Electric leakage protection
9. cut-off tool breakage detector
10. Special shaped material clamping device
11.Thread whirling tool holder
12. Front eccentric tool holder
1. Automatic bar feeder
2. Chip conveyor
3. Oil mist collector
4. High pressure pump
5. Long workpiece collector
6. Workpiece belt conveyor
7. xternal working litht
8. Electric leakage protection
9. cut-off tool breakage detector
10. Special shaped material clamping device
11.Thread whirling tool holder
12. Front eccentric tool holder
