Single spindle Swiss-type lathe SZ-25EN3
Model：SZ-25EN3
Features
●New upgrade EN series single spindle, higher rigidity! More stability!
●It is easy to switch between two processing modes: guide bush mode and no guide bush mode.
●Modular design, can be loaded with a variety of tools.
●Maximum processing diameter 20mm/26mm
●The spindle adopts high-speed motorized spindle, whose electromagnetic energy is directly converted into mechanical energy without transmitting power loss,
and realizes the high speed of the spindle, and the power curve at both ends realizes low speed and high torque output.
●Adopt new heat source cooling scheme, centralize cooling of motorized spindle and power head, and use heat exchanger to reduce temperature rise of electric cabinet.
Product Details
Processing application：
Medical equipment, hardware tools, textile machinery, electronic communication, aerospace, etc.
| Model | SZ-25EN2 3 axis, single spindle | SZ-25EN3 3 axis, single spindle | |||

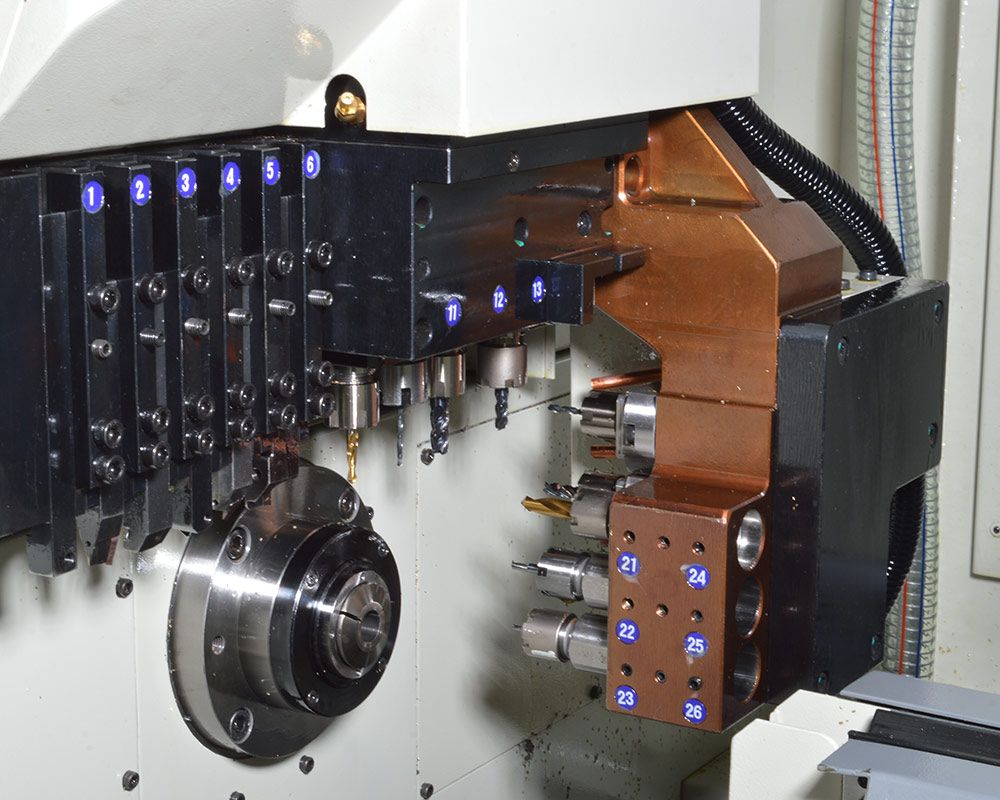

| Cutting-tool layout sketch |  |  | |||
| NC device | Mitsubishi E80 | Mitsubishi E80 | |||
| Power source | 200VAC | 200VAC | |||
| Lathe rated power | Kw | 8 | 8 | ||
| Machining range | Max machining dia. | mm | φ25 | ||
Main spindle max clamping dia. | mm | φ25 | |||
| Max feed length (once) | mm | Max 240 | |||
| Main spindle | Main spindle power | Kw | 2.2/3.7 | ||
| Main spindle max through hole dia. | mm | Max φ27 | |||
C axis resolution | ° | C1 0.001° | |||
| Main spindle rev speed | rpm | Max10000 | |||
| Main spindle max travel | With guide bush | mm | 240 | ||
| Non guide bush | mm | 355 | |||
| Max tool installed qty. | pcs | 14 | 16 | ||
| Cross live tool | Qty.×Model | 4×ER16 | |||
| Drilling dia. | mm | Max Φ10 | |||
| Tapping/Threading die dia. | Max M8 | ||||
Live tool rev speed | rpm | Max 5000 | |||
| Live tool power | Kw | 1 | |||
| End-face tool （Main spindle） | Fixed | Qty.×Model | 4×ER16 | 3×ER16 | |
| Drilling dia. | mm | Max φ10 | Max φ10 | ||
| Tapping/Threading die dia. | Max M8 | Max M8 | |||
| Live | Qty.×Model | - | 3×ER16 | ||
| Drilling dia. | mm | - | Max φ8 | ||
| Tapping/Threading die dia. | - | Max M6 | |||
Live tool rev speed | rpm | - | Max5000 | ||
| Live tool power | Kw | - | 0.4 | ||
| Rapid feed speed | m/min | 30(Z/Y) 24(X) | |||
| Feed motor power | Kw | 1(Z/X/Y) | |||
Main/sub spindle cooling oil pump power | Kw | 0.12 | |||
| Lubricating oil pump power | Kw | 0.004 | |||
| Max collecting length of workpieces collect box | mm | 50 | |||
| Main/sub spindle center to the bottom of lathe body | mm | 1050 | |||
| Cutting oil tank volume | L | 150 | |||
| Net weight | Kg | 1950 | |||
| Dimensions(L×W×H) | mm | 1868×1302×1738 | |||
Notes: FANUC system
| 20/25 series | ||
| OP system | SYNTEC 22TB/220TB | FANUC Oi-TF Plus |
| Power source | 380VAC | 200VAC |
| Live tool power | 1Kw | 0.75Kw |
| Live tool rev speed | 5000rpm | 4000rpm |
Standard configuration
1. Taiwan syntec control system
2. 10.4 inch Color LCD display
3. Main/sub spindle cooling system
4. Lricating system
5. Rotatory guide bush
6. Main/sub spindle air blowing device
7. Main/sub spindle air blowing device
8. Electric leakage protection
9. Transformer
10. External light connector
11. 3-colour tower light
12. HIWIN/PMI screw/guide rail, Class 3
13. Cutting oil tank
14. Main/sub spindle collet 1pcs; guide bush 1 pcs
15. Tool cabinet
1. Taiwan syntec control system
2. 10.4 inch Color LCD display
3. Main/sub spindle cooling system
4. Lricating system
5. Rotatory guide bush
6. Main/sub spindle air blowing device
7. Main/sub spindle air blowing device
8. Electric leakage protection
9. Transformer
10. External light connector
11. 3-colour tower light
12. HIWIN/PMI screw/guide rail, Class 3
13. Cutting oil tank
14. Main/sub spindle collet 1pcs; guide bush 1 pcs
15. Tool cabinet
Optional configuration
1.Automatic bar feeder
2. Chip conveyor
3. Oil mist collector
4. High pressure pump
5. Long workpiece collector
6. Workpiece belt conveyor
7. xternal working litht
8. Electric leakage protection
9. cut-off tool breakage detector
10. Special shaped material clamping device
11.Automatic fire extinguisher
1.Automatic bar feeder
2. Chip conveyor
3. Oil mist collector
4. High pressure pump
5. Long workpiece collector
6. Workpiece belt conveyor
7. xternal working litht
8. Electric leakage protection
9. cut-off tool breakage detector
10. Special shaped material clamping device
11.Automatic fire extinguisher
